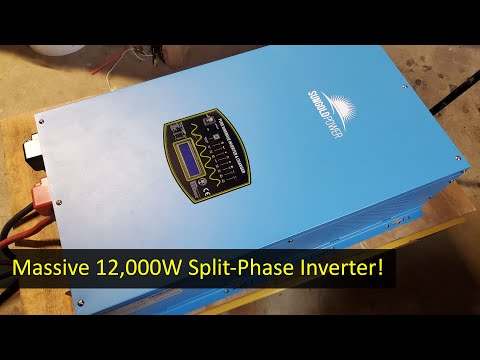

Sungoldpower, 12000W 48V split phase inverter, is built to run the whole house, business office, or large RV, which is perfect for using with renewable solar and using as an off-grid home and business backup power supply. The split-phase inverter requires 240V AC input and can provide 110/120VAC OR 220/230/240VAC output power for all kinds of appliances.
This inverter charger is built with UPS function to provide uninterrupted power to run household electric devices. The solar inverter comes with an internal transfer switch, so you don’t have to do anything when the power goes out. All the devices you have selected will be connected to the back-up power source automatically. In fact, you will not even notice that the power cut happened.
★ It is built-in 120 amp battery charger uses AC power, from the grid or from a generator, to recharge different kinds of battery bank.
★ Built-in solar controller, Maximum solar input voltage 145V, Maximum solar input current 80A, can also connect with external controller.
★ Low Frequency Inverter, High Quality, your best choice for your 48V home system.
*12KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
*Auto Generator Start (AGS)
*Support Solar Panel with MPPT Function
*Include Battery Temperature Sensor (BTS) and Remote Control
*8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
*Compatible With All kind of Home & Office Appliances
*Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
*Built-in transfer switch and battery charge, backup or off grid power solutions
*AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
*4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
*8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
*15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator
Continuous Output Power: 12.0KW
Surge Rating(20s): 36.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V ( not suitable for AC 120V input )
DC Battery Voltage: 48Vdc
Solar charger Current: 80Amp
AC Battery charger: 120±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery voltage recover: 62.0Vdc
Power Saver on Idle Consumption: 40W
Power Saver off Idle Power: 180W
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown: 62.8V
Charger Breaker: 80A
Input Voltage Waveform: Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)
Solar Charger controller: (you can disable our solar controller, and connect with external solar controller）
Solar Input Voltage Range: 60-145Vdc
Max.PV Open Circuit Array Voltage: 145Vdc
Rated Charge Current: 80A
Over Charge Disconnection: 59.2V
Over Charge Recovery: 54.4V
Over Discharge Disconnection: 43.2 V
Over Discharge Reconnection: 49.6V
*12000W 48V Split Phase Pure Sine Wave Solar Power Inverter
*Unit Weight: 160LB
*Unit Size: 27.6 x 16.5 x 8 inch
*Shipping Weight: 185 LB
*Shipping Size: 29.2 x 23 x 16.5 inch
Frequently Asked Questions
1. How do you connect this to a home with the multiple phase system?
It only has dual phase output, 120V and 240V, it can't work with the multiple phase system.
2. This inverter can use 240v, and 120v at the same time?
If you need have 240V & 120V load at the same time, HOT1 will have 2cables connected, but please note that 120V load power cannot exceed 50% of inverters real power, it is only 6000W if 120V output, hope your kind understanding.
3. What is power consumption of the inverter with no load?
The power saver on idle consumption is 40W and power saver off idle power is 180W.
