ACiQ 18000 BTU Floor Mounted Mini-Split Air Handler

100 reviews
by ACIQ
Original price $0
Original price $850.00 - Original price $850.00
Original price
Current price $850.00
$850.00 - $850.00
Current price $850.00
 More payment options
Description

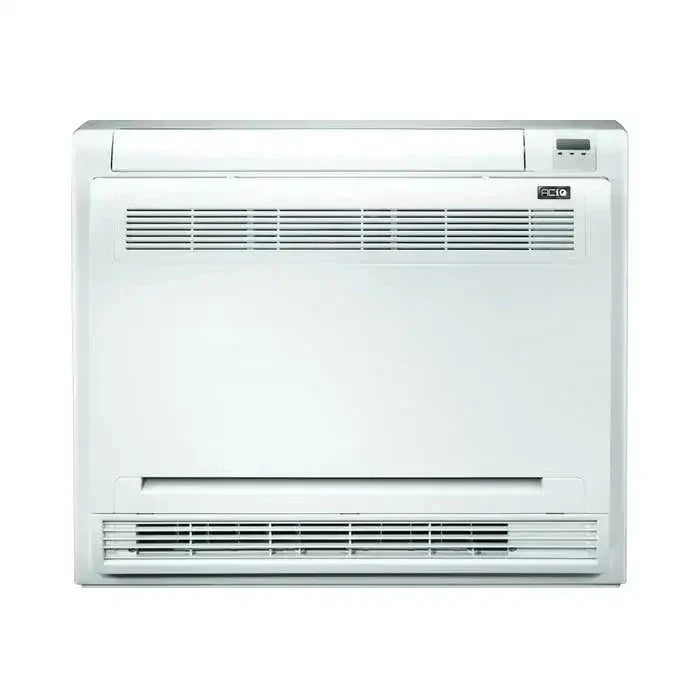

ACiQ 18000 BTU Floor Mounted Mini-Split Air Handler

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

Features

  • 18,000 btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a medium room in most climates
  • Remote control thermostat included

Optimized for heat

Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.

ACiQ 18000 BTU Floor Mounted Mini-Split Air Handler Specifications

Features Details
Product Name 18,000 BTU Floor Mounted ACiQ Mini-Split Air Handler
SKU ACIQ-18FM-HH-MB
Weight 68.34 lbs
Brand/Manufacturer ACiQ
Controller Wireless Included
Cooling Capacity (BTU) 18,000 BTU
Heating Capacity (BTU) 18,000 BTU
Maximum Airflow (CFM) 548
Noise Level (dBA) As low as 39
Energy Star Certified Yes
Refrigerant Type R-410A
Liquid Line 1/4"
Suction Line 1/2"
Electrical Specs 208/230V
Phase Single Phase
Max Breaker Size 25 Amps
Min Breaker Size 20 Amps
BTU/Tonnage 18,000 BTU / 1.5 Ton
Mini-Split Type Floor Mounted
Zone Compatibility Multi Zone
Dimensions (H x W x D) 9.25" x 42.05" x 26.57"
Warranty 12-Year Compressor, 7-Year Parts (with online registration)
Safety Information This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
